3.2V 50AH Deep Cycle lifepo4 batteries
3.2V 50AH Deep Cycle lifepo4 batteries

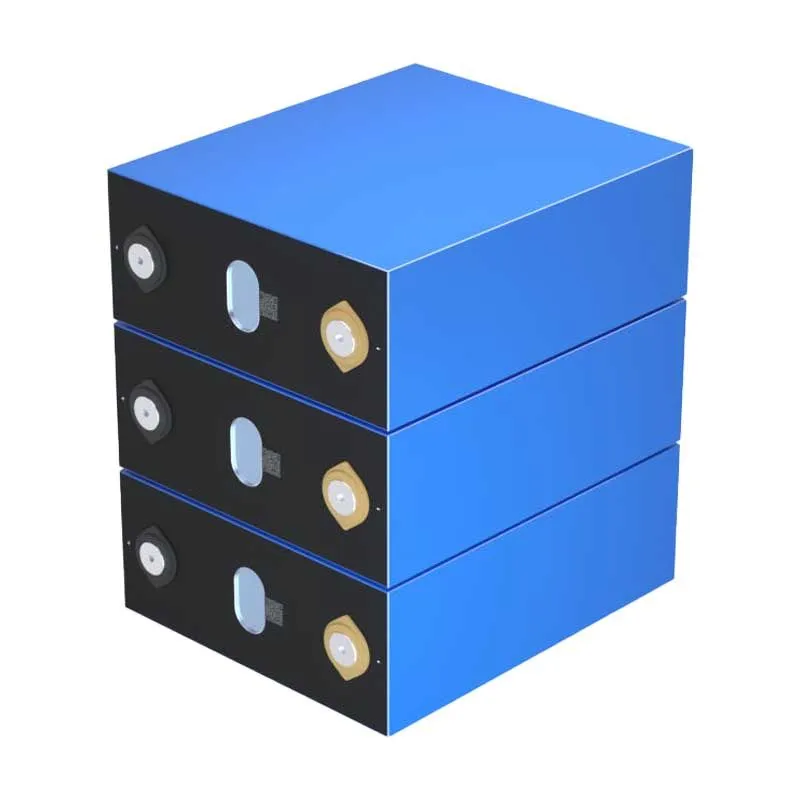

Customized Lifepo4 Battery Prismatic Pouch Cell

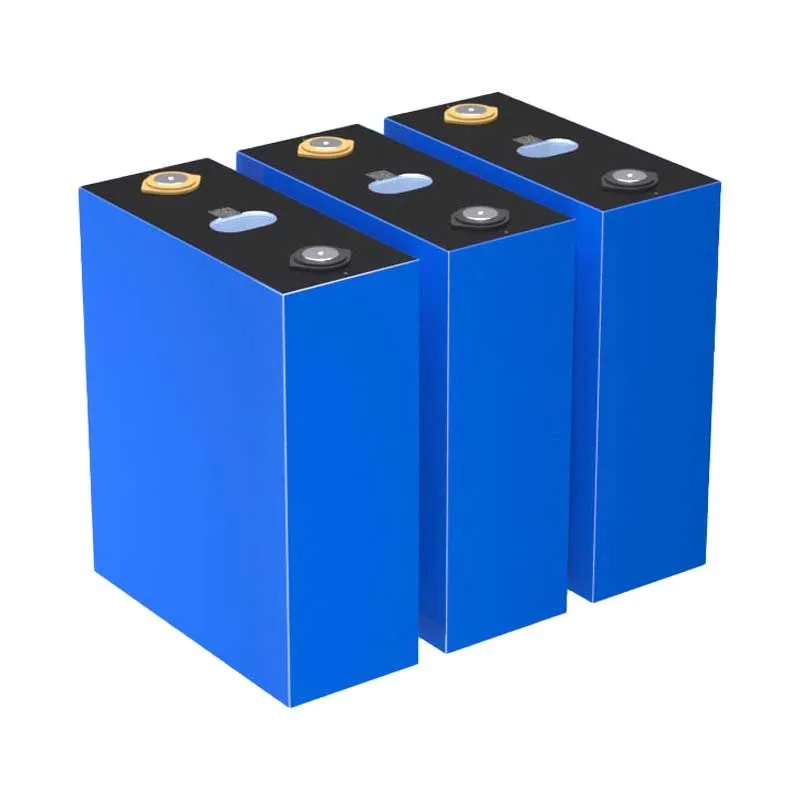

3.2V Customized Lifepo4 Battery Cell LPF

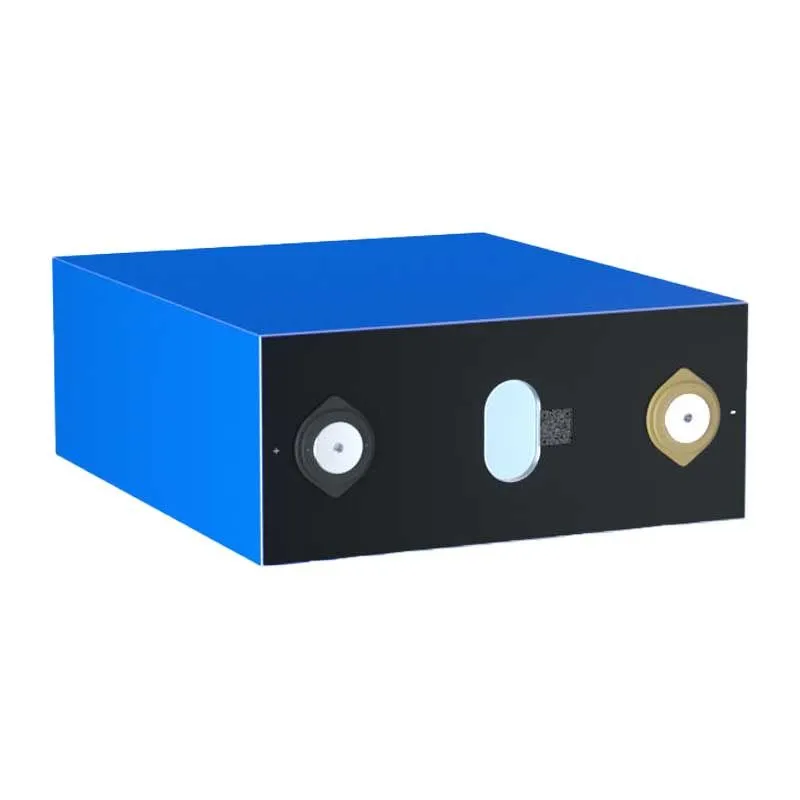

3.2V 50Ah prismatic pouch cell

3.2V 50AH Deep Cycle Prismatic Pouch Cell Customized Lifepo4 Battery Cell LPF| CE/UL Certified

$0.00

Experience superior reliability with our 3.2V 50AH Deep Cycle prismatic and pouch cells, engineered to provide high-density energy storage for the most demanding industrial and commercial applications. As a premier manufacturer, we specialize in customizing LiFePO4 battery cells that meet rigorous international safety standards.

Categories: , ,

Description

No. Item Parameter
1 Average Capacity 53Ah
2 Rated Capacity 50Ah
3 Rated Voltage 3.2V
4 Internal Resistance ≤1.5 mΩ
5 Charging (Constant Current Constant Voltage) Maximum Continuous Charging Current 1CA
Maximum Pulse Charging Current 2CA (within 30s)
Charging Cut-off Voltage 3.65V
6 Discharging Maximum Discharging Current 3CA
Discharging Cut-off Voltage 2.5V
7 Charging Time Standard Charging 2.0h
Quick Charging 1.0h

Our 3.2V 50AH Deep Cycle batteries utilize Lithium Iron Phosphate (LiFePO4) chemistry, widely recognized for its exceptional thermal stability and long cycle life. We offer these cells in two primary form factors: Prismatic Cells, known for their robust aluminum casing and mechanical strength, and Pouch Cells, which provide a lightweight, flexible alternative for space-constrained designs.

To meet diverse project requirements, our product line includes various capacity models beyond the 3.2V 50AH Deep Cycle standard, ranging from high-rate discharge cells to high-capacity storage units. By employing strategic series and parallel configurations, these cells can be assembled into high-voltage battery packs, such as:

  • 12.8V (4S) for lead-acid replacement.
  • 25.6V (8S) for electric mobility and marine use.
  • 48V/51.2V (15S/16S) for residential energy storage and telecommunications.

Versatile Applications

The 3.2V 50AH Deep Cycle cell is a versatile powerhouse. Its ability to handle deep discharge cycles without significant degradation makes it the ideal choice for:

  • Solar & Wind Energy Storage: Capturing renewable energy for off-grid or hybrid systems.
  • Electric Vehicles (EVs): Powering golf carts, AGVs, and electric forklifts with consistent 3.2V 50AH Deep Cycle energy.
  • UPS & Backup Power: Ensuring critical data centers and medical equipment remain operational during outages.
  • Marine & RV: Providing silent, eco-friendly power for lighting, appliances, and trolling motors.

Why Choose Long Sing Energy?

When you source your 3.2V 50AH Deep Cycle batteries from Long Sing Energy, you are partnering with a factory dedicated to excellence. Our facility integrates advanced automated production lines to ensure every cell maintains strict capacity and internal resistance consistency.

  1. Certified Quality: Every 3.2V 50AH Deep Cycle battery we produce is CE/UL certified, ensuring compliance for global export and safety in high-stakes environments.
  2. Customization Expertise: From tab welding to bespoke BMS integration, we tailor our 3.2V 50AH Deep Cycle solutions to your specific voltage and dimensions.

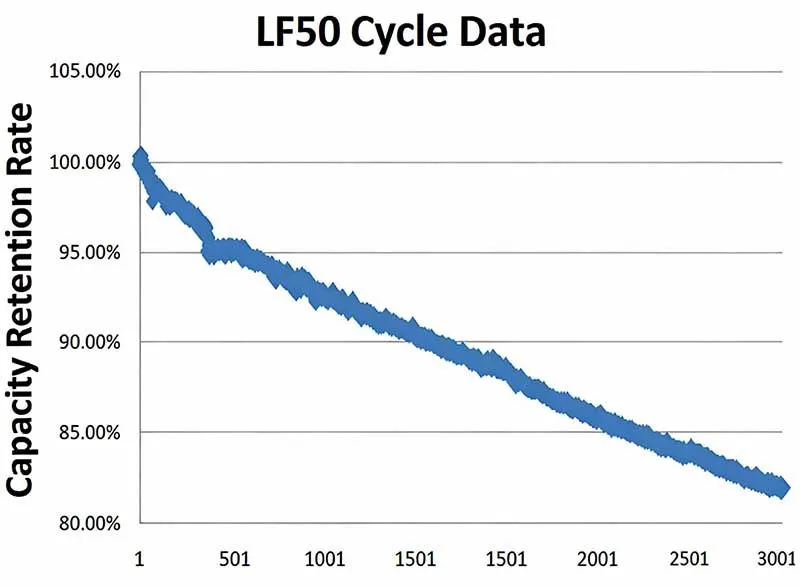

  3. Proven Durability: Our cells are tested for over 2,000 to 5,000 cycles, providing a lower total cost of ownership compared to traditional battery technologies.

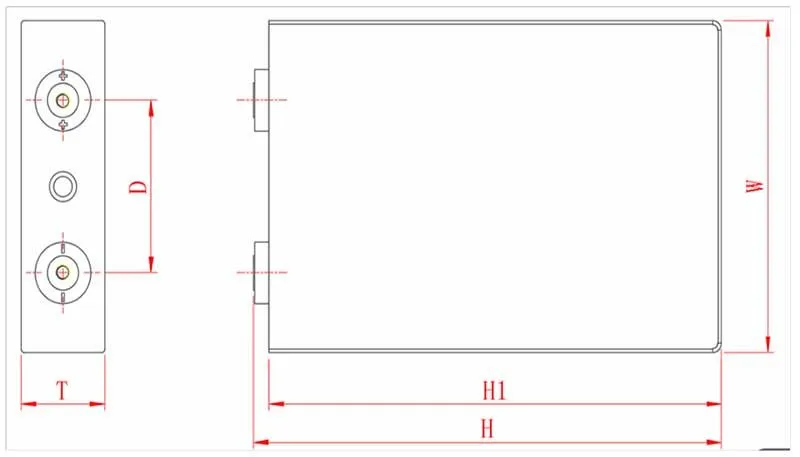

Item Description Dimension
W Width 135.0 ±1.0mm
T Thickness 30.0±1.0mm
H Height (Total Height) 185.0±1.0mm
H1 Height (Main Body Height) 180.0±1.0mm
D Terminal Center Distance 67.5±1.0mm

Partner with the Experts

Selecting the right power source is critical to the success of your project. Our engineering team is ready to help you optimize your configuration using the 3.2V 50AH Deep Cycle cell to achieve maximum efficiency and longevity.

Ready to elevate your energy storage? We invite you to fill out the inquiry form below with your specific requirements. Whether you need a single prototype or a large-scale OEM order of the 3.2V 50AH Deep Cycle battery, our team will provide a detailed technical quote within 24 hours.
