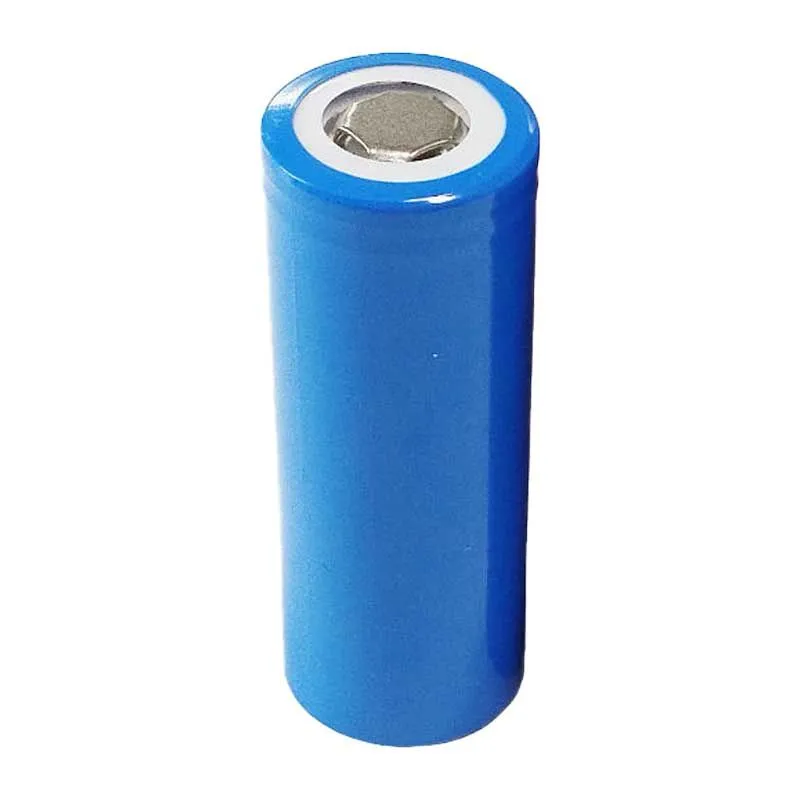

26700 Lifepo4 3.2v 3.6Ah
26700 Lifepo4 3.2v 3.6Ah

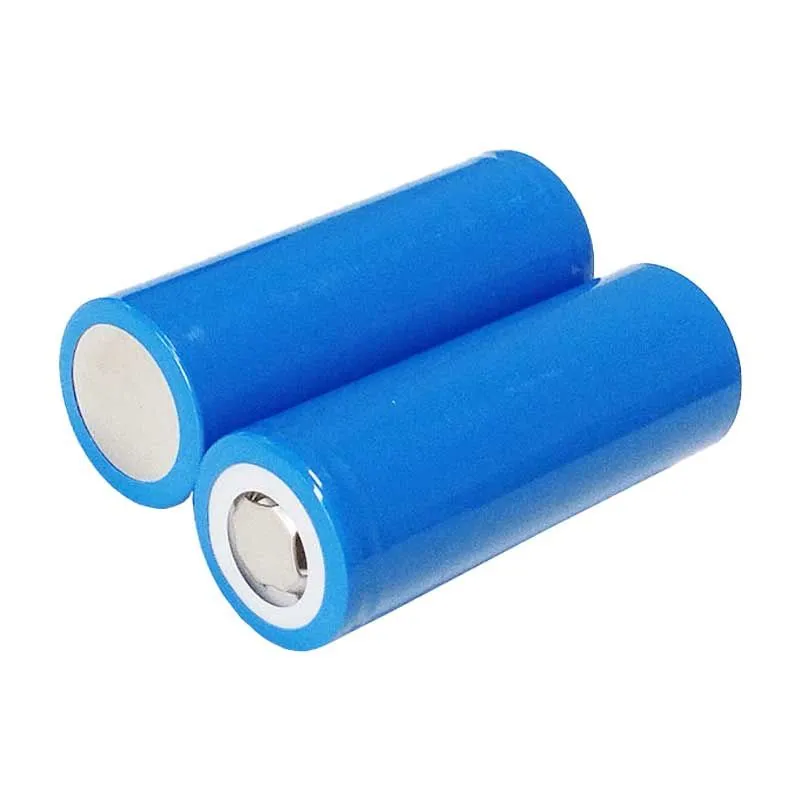

Lifepo4 3.2v 3.6Ah 3C

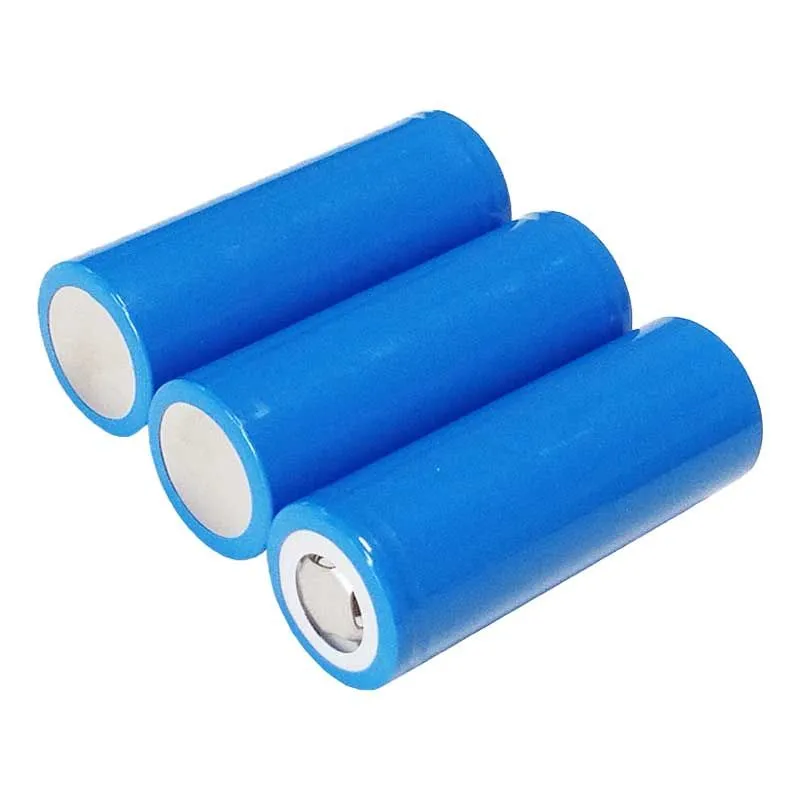

3.2v 3.6Ah Cylindrical Lithium Ion Batteries
Cylindrical Lithium Ion Batteries 26700
26700 battery hot sale

Hot Sell 26700 Lifepo4 3.2v 3.6Ah 3C Rechargeable Cylindrical Lithium Ion Batteries Cell

$0.00

The 26700 Lifepo4 3.2v 3.6Ah cell is a high-performance power solution engineered for industries that demand the ultimate balance of safety, thermal stability, and long-term reliability. Featuring advanced Lithium Iron Phosphate (LFP) chemistry, this cylindrical cell is specifically designed to handle high-drain applications with its 3C continuous discharge rating.

Categories: , ,

Description

Items Specification
Rated Capacity 3.6 Ah
Minimum Capacity 3.55 Ah
Nominal Energy 11.52 Wh
Nominal Voltage 3.20 V
Upper Limited Charging Voltage 3.65 V
Limited Charging Voltage 3.65 V
Discharging Cut-off Voltage 2.00 V
Discharge End Voltage 2.00 V
Internal Resistance ≤20 mΩ (AC)
≤35 mΩ (DC)
Standard Charge Current 1C (3.6 A)
Standard Discharge Current 1C (3.6 A)
Maximum Continuous Charge Current 3C (10.8 A)
Standard Charge Method At 25°C ±2°C, charge with 1C (3.6A) constant current (CC) to 3.65V, followed by constant voltage (CV) charging at 3.65V until current tapers to 0.05C (0.18A).
Standard Discharge Method At 25°C ±2°C, discharge with 1C (3.6A) constant current until 2.00V cut-off.
Operating Temperature (Cell Surface Temperature) Charge: 0°C ~ 55°C
Discharge: −20°C ~ 60°C
Storage Temperature Less than 1 year: −20°C ~ 25°C
Less than 3 months: −20°C ~ 35°C
Dimension Height: 71 ±0.2 mm
Diameter: 26.4 ±0.2 mm
Weight 91 ±3 g

High-Performance Engineering & Specifications

In the world of professional battery procurement, the 26700 Lifepo4 3.2v has emerged as a superior alternative to traditional 18650 or 26650 formats when safety and longevity are the primary concerns. This cell offers a robust 3.2V nominal platform and a 3.6Ah capacity, making it a “sweet spot” for high-efficiency power packs.

  • Cell Type: Lithium Iron Phosphate (LiFePO4 / LFP).
  • Model: 26700 (26mm Diameter, 70mm Height).
  • Nominal Voltage: 3.2V (Working range: 2.0V – 3.65V).
  • Capacity: 3600mAh (3.6Ah) / 11.52Wh.
  • Discharge Rate: 3C Continuous (10.8A), suitable for high-pulse power requirements.
  • Cycle Life: ≥2000 cycles at 80% DOD (Depth of Discharge), significantly outlasting standard NCM lithium-ion cells.
  • Safety Features: Inherently safe LFP chemistry prevents thermal runaway even under puncture or extreme heat.

Modular Configuration & Battery Pack Assembly

One of the greatest strengths of the 26700 Lifepo4 3.2v is its modularity. Its cylindrical form factor allows for excellent heat dissipation between cells, which is critical for high-voltage packs. Common configurations include:

  • 12V Systems (4S1P/4S2P): Ideal for lead-acid battery replacements in RVs and marine applications.
  • 24V/36V Systems: Frequently used in electric wheelchairs and automated guided vehicles (AGVs).
  • 48V Systems (15S/16S): The standard for solar energy storage and residential backup power.
  • Custom Parallel Stacks: Connecting multiple cells in parallel to achieve 10Ah, 20Ah, or 50Ah capacity while maintaining the stable 3.2V platform.

Versatile Application Scenarios

The 26700 Lifepo4 3.2v is utilized across a vast array of high-drain and long-life sectors:

  • Light Electric Vehicles (LEV): Powering electric bicycles, e-scooters, and golf carts with reliable, fire-safe energy.
  • Solar & Wind Energy Storage: Storing renewable energy for off-grid lighting and telecommunication base stations.
  • Portable Power Stations: Serving as the core energy unit for outdoor power banks and emergency jump starters.
  • Industrial Automation: Providing the high-pulse current needed for robotics and cordless power tools.
  • UPS & Backup Systems: Ensuring zero-downtime for critical servers and medical equipment.

Why Choose Long Sing Energy Factory?

As a specialized manufacturer, Long Sing Energy delivers 26700 Lifepo4 3.2v cells that meet strict industrial standards. By sourcing directly from our factory, you gain:

  1. Industrial Consistency: Every cell is batch-matched for voltage and internal resistance, ensuring perfectly balanced battery packs.
  2. Factory-Direct Pricing: We eliminate middlemen to offer the most competitive wholesale rates in the 2026 market.
  3. Advanced Testing: Each 26700 Lifepo4 3.2v unit undergoes rigorous capacity grading and safety testing (short-circuit, overcharge, and drop tests).
  4. Full Certification: Our facility is ISO9001 certified, and our cells carry UL, CE, UN38.3, and RoHS marks for seamless global export.

Secure Your Energy Future

At Long Sing Energy, we don’t just sell batteries; we provide the power that drives your innovation. Our 26700 Lifepo4 3.2v 3.6Ah cells are in stock and ready for immediate global shipment.

Ready to optimize your project with LiFePO4 technology?
We invite you to fill out the inquiry form below to receive our latest 2026 wholesale price list and technical data sheets. Our engineering team is standing by to assist with your custom pack designs and bulk procurement needs. Let’s build a safer, more sustainable world together.
